PERI UP Flex Weather Protection Roof

PERI UP shoring towers have been type-tested for heights of up to 21.89 m; up to two additional frames can be attached.

PERI UP Flex has a grid system of 25 cm and 50 cm. The wide range of ledgers and decks with different lengths starting from 25 cm allow decking to change direction during installation and therefore ensure maximum adaptability to suit project-specific geometries. PERI UP Flex meets the requirements of the European standards EN 12810 and EN 12811

  • Overview
  • Technical Details

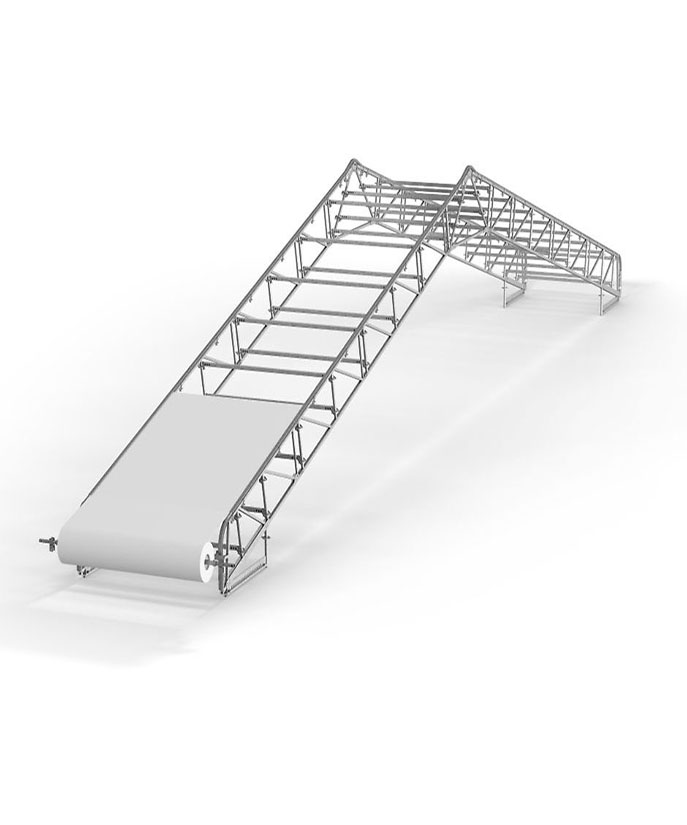

With the PERI UP Flex Weather Protection Roof, temporary and protective roofing facilities can be quickly and easily realized. The system is used for roof refurbishment, extension work, bridge and motorway construction sites or at jobsites during the colder winter months. LGS is designed to accommodate large spans and high loads. It provides a high level of safety both during assembly as well as use. As an option, the roof can be designed as a movable version.

Fast assembly
Easy pre-assembly on the ground, and raising the complete girder package by crane

Flexible adaptability
Can be realized with different inclinations and geometries

Safe without personal protective equipment
Walkways ensure safe working conditions on the roof segments without requiring personal protective equipment against falls from a height.

  • Spans up to 45 m, up to 35 m without tension system
  • Standard roof inclination 15°; project-specififi c roof inclinations on request
  • Dimensions of LGS Basic Element H = 150 cm, L = 300 cm or L = 150 cm
  • Variable girder spacings from 50 cm to 300 cm
  • Individual roof geometries through project-specififi c adaptation of the Ridge Elements
  • As an option, the tarpaulin can be closed by means of an electric drawing-in device
