PERI UP MI
PERI UP shoring towers have been type-tested for heights of up to 21.89 m; up to two additional frames can be attached.
PERI UP Flex has a grid system of 25 cm and 50 cm. The wide range of ledgers and decks with different lengths starting from 25 cm allow decking to change direction during installation and therefore ensure maximum adaptability to suit project-specific geometries. PERI UP Flex meets the requirements of the European standards EN 12810 and EN 12811
- Overview
- Technical Details

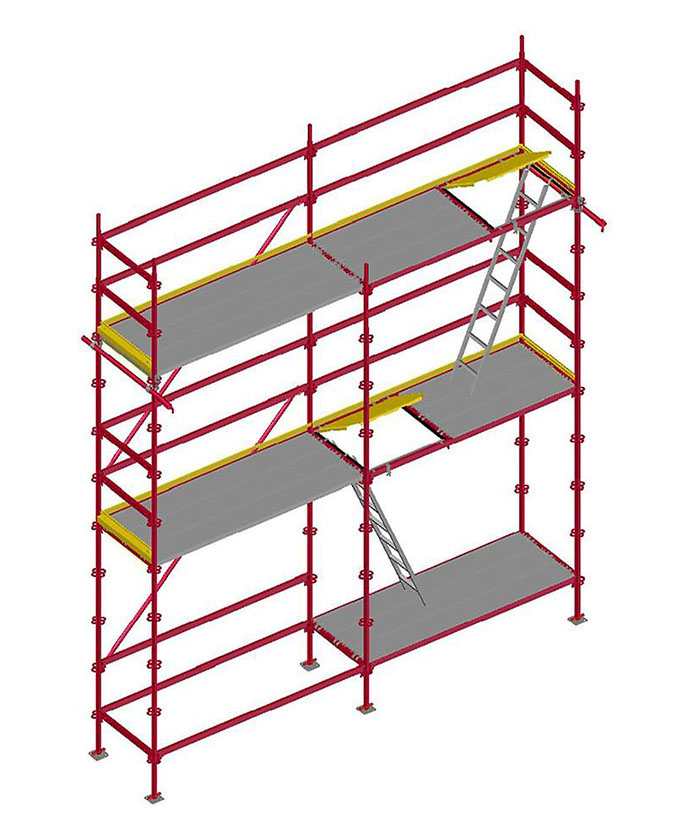

PERI UP MI is an innovative solution among the steel scaffolding systems and stands for quick and simple assembly. lt is adaptable to suit all geometries and applications like facade scaffolding, shoring towers and access scaffolding. PERI UP MI is a modular and flexible system with gravity lock technology which allows easy and safe assembly.
Modular and Flexible
Single system for shoring, facade scaffolding, mobile working scaffold, access scaffold & industry application
Optimized safety
High level of working safety with built-in safety features
Ease of handling
Overall shape and design, low component weight makes it easy to handle at job site.
Cost-effectiveness
Better economy through high labour productivity and faster erection
(Adoption to Indian grid)
| Application | Dimensions |
|---|---|
| Shoring tower application | 900mm x 900mm 900mm x 1200mm 900mm x 1800mm 1200mm x 1200mm 1200mm x 1800mm 1800mm x 1800mm |
| Scaffolding application | 900mm x 2400mm 1200mm x 2400mm |
| Component | Dimensions |
|---|---|
| Standard MVR | 50cm / 100cm / 150cm / 200cm / 300cm |
| Top Standard MVH | 50cm / 100cm / 150cm / 200cm / 250cm |
| Ledger MH | 90cm / 120cm / 150cm / 180cm / 240cm |
| Steel Deck | Length: 90cm / 150cm / 180cm / 240cm |
| Ledger Brace MBL | 90cm/100cm, 90cm/150cm, 90cm/200cm 120cm/100cm, 120cm/150cm, 120cm/200cm 180cm/100cm, 180cm/150cm, 180cm/200cm 240cm/100cm, 240cm/150cm, 240cm/200cm |
| Base Spindle MJB | |
| Crosshead Spindle |
