PERI UP Rosett Modular Scaffold

PERI UP shoring towers have been type-tested for heights of up to 21.89 m; up to two additional frames can be attached.

PERI UP Flex has a grid system of 25 cm and 50 cm. The wide range of ledgers and decks with different lengths starting from 25 cm allow decking to change direction during installation and therefore ensure maximum adaptability to suit project-specific geometries. PERI UP Flex meets the requirements of the European standards EN 12810 and EN 12811

  • Overview
  • Technical Details

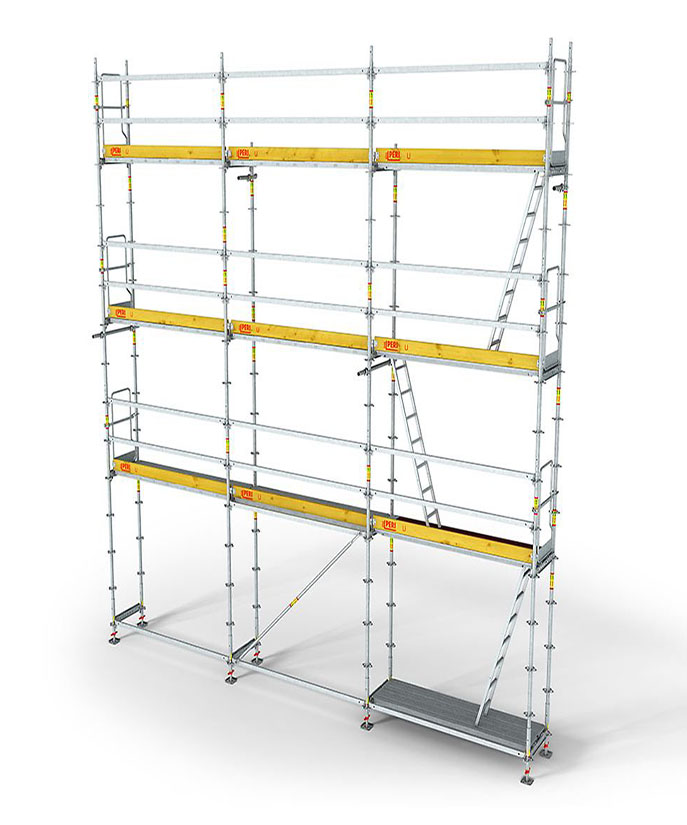

With PERI UP Rosett, complicated geometries can also be scaffolded cost-effectively, e.g. old buildings with bay windows and cantilevers. The Rosett nodes on the standards facilitate easy and safe assembly whilst the steel decks have a particularly high load-bearing capacity.

The perfectly matched system and component dimensions allow any combination of frame scaffolding with modular scaffolding.The integrated protection against lifting provides access ways of equal height and without any obstacles. The requirements regarding working safety also remain fulfilled: the guardrail heights are according to the regulations and toe boards can be fitted from end to end.

PERI UP Rosett meets the requirements of the European standards EN 12810 and EN 12811 and fulfills the requirements for protection scaffolds according to DIN 4420-1 (safety scaffolds and roof safety scaffolds for fall heights ≤ 2.0 m, protection fans)

  •  PERI UP Rosett 72
    System width 72 cm
    Decking area width 64 cm
    Load Classes 1 to 4

  • PERI UP Rosett 104
    System width 104 cm
    Decking area width 96 cm
    Load Classes 1 to 6

Practically unlimited
Optimal adjustment possibilities regarding height, width and length

Extremely easy to assemble
Fast and safe assembly with the gravity lock

Reassuringly safe
Without any additional components due to the integrated lock against lift off

Brief description
Working scaffolding made of parts from Rosett modular scaffold system with 72 an 104 cm widths, standard 24 m heights

Safe and fast assembly

  • Assembled with guardrail in advance and Guardrail Coupler UPW or ledger in advance
  • Integrated lock against lifting
  • Gravity Lock secures ledger immediately when assembled
  • Rectangular shaped Rosett prevents rolling away

Load classes/ associated deck length

  • Width 72 cm: 1 up to 4
  • Width 104 cm: 1 up to 6
  • Steel deck 32x250 cm ≤ 6
  • Steel deck 32x300 cm ≤ 5

Handling

  • Standard 2,0 m: 10,0 kg
  • Ledger 3,0 m: 8,7 kg
  • Steel deck 32x250cm: 17,0 kg
  • Steel deck 32x300cm: 19,9 kg
  • Assembly using guardrail in advance: standard + guardrail: 13.1 kg

Connection Possibilities

  • Metric grid dimensions every 25 cm
  • Nodes every 50 cm
  • 12 connections for ledgers and diagonals

Offered Services

  • Scaffold is also rentable on a worldwide basis
  • Supervisor
  • Technical support for projects

Weight/m²
R72: 14,0 – 16,0 kg/m²
R104: 17,5 – 19,0 kg/m²

Assembly Performance
Assembly R72: 8 - 11 m² per man hour
Dismantling R72: 12 - 17 m² per man hour
